How to measure water pressure for irrigation

Learn how to measure your home water pressure for irrigation with or without a gauge, minimum values for each sprinkler type, and how to calculate pipe pressure losses.

How to measure water pressure for irrigation
Foto: niranvv (BY 2.0)

Why pressure is your starting parameter

Every pop-up sprinkler has a manufacturer-rated radius that only holds at a specific pressure, usually around 45 PSI (3 bar). A head rated for a 20 ft (6 m) throw at 45 PSI may reach only 14–15 ft (4–4.5 m) at 22 PSI (1.5 bar), a 25–35% loss of coverage. Design from your real pressure, not the catalog number.

Skip this measurement and the whole layout rests on assumptions that rarely match reality. The classic symptom is an installed system that never quite covers the lawn, with dry stripes appearing in the spots farthest from each head.

Pressure also changes within a single property. The higher the garden sits relative to the water meter, the lower the pressure you get: every 10 ft (3 m) of elevation gain costs roughly 4.3 PSI (0.3 bar). A sloped backyard can read noticeably lower at the top than down by the house.

Typical residential pressure: what to expect

In the US, municipal supply usually runs 40–80 PSI (2.7–5.5 bar), with 45–60 PSI the most common range; older homes or houses on a hill can sit below 40 PSI. Across much of Europe, mains pressure is lower, around 2–4 bar (30–58 PSI).

Always separate static pressure (no water flowing) from dynamic pressure (read while water flows). Size irrigation around dynamic pressure measured at about the flow one zone will use. There is no fixed ratio between the two: how far the reading drops depends on the flow, the service line, the meter and the pipes, so measure it instead of taking a percentage off the static number.

If static pressure tops 65–80 PSI (4.5–5.5 bar), add a pressure reducer ahead of the irrigation manifold. Excess pressure shortens the life of heads and solenoid valves and causes misting, the fine fog that EPA WaterSense identifies as a major source of evaporation and wind-drift loss.

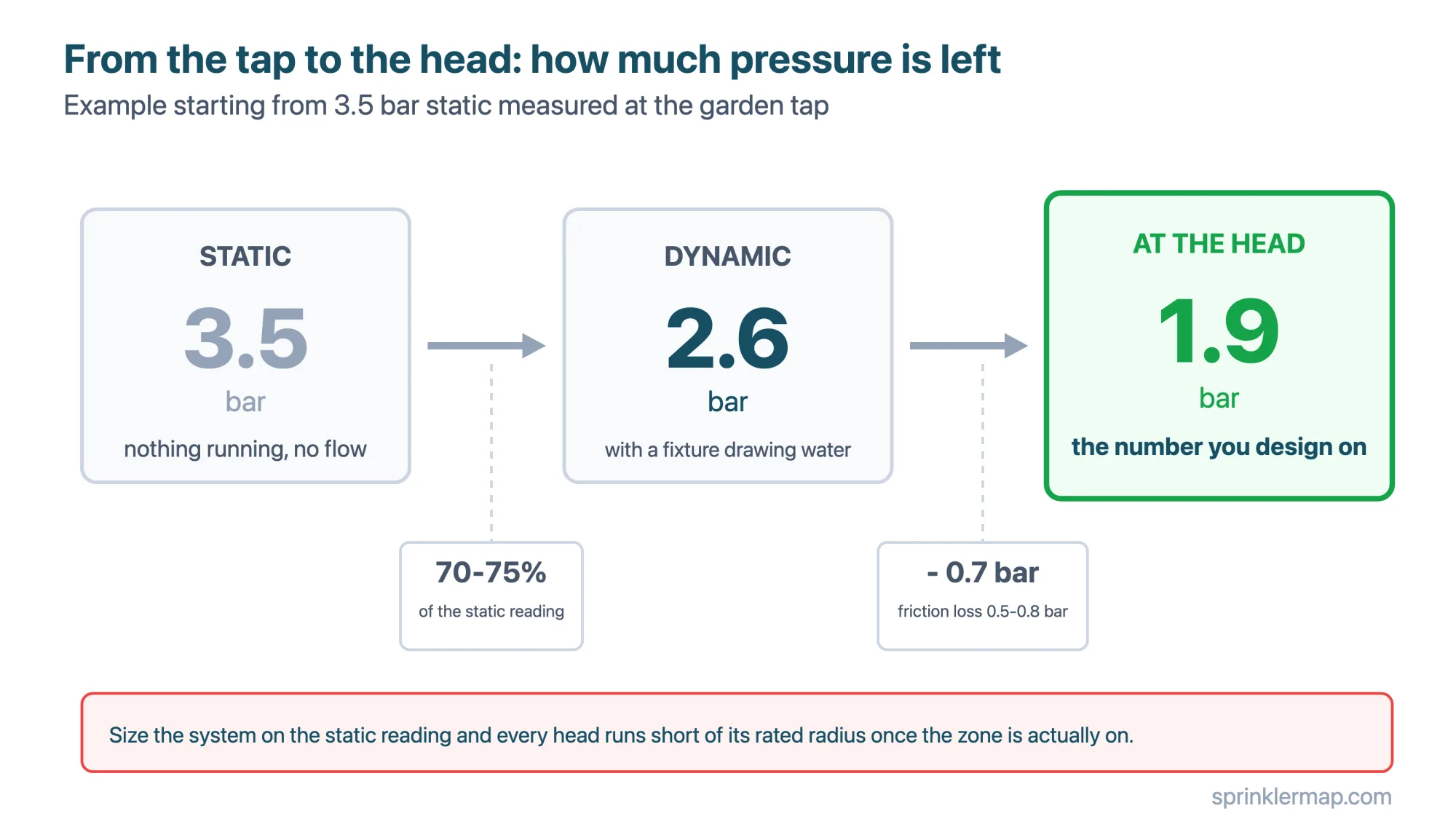

From 3.5 bar static at the tap, 2.6 bar remain dynamic (70-75%) and 1.9 bar reach the head after 0.5-0.8 bar of friction loss: the last figure is the one to design on
From 3.5 bar static at the tap, 2.6 bar remain dynamic (70-75%) and 1.9 bar reach the head after 0.5-0.8 bar of friction loss: the last figure is the one to design on

How to measure it: tools and procedure

The only tool you need is a hose-thread pressure gauge, about $8–15 at any hardware store. Thread it onto the outdoor spigot, open the valve slowly, and wait 5–10 seconds for the needle to settle. That reading is your static pressure.

For dynamic pressure, put a hose-bib tee on the spigot with the gauge on one branch and a hose or valve on the other. Open the free branch to about the flow one zone will use and read the gauge while the water runs, at the time of day you plan to irrigate. Opening a random indoor fixture gives you a reading under an unknown load, which is not much use for design.

Measure flow too, because pressure alone does not tell you how many heads can run at once. Remove the gauge, fill a 5-gallon bucket and time it: gallons divided by seconds, times 60, gives gallons per minute. Five gallons in 40 seconds is 5 ÷ 40 × 60 = 7.5 GPM (about 28 L/min). Keep the heads on one zone under about 80% of that figure, here 6 GPM.

Be clear about what the bucket tells you: it measures flow, not pressure. Fill time depends both on pressure and on how much the spigot and hose choke the stream, so two homes at the same pressure can fill it at different speeds. The shortcut is 300 divided by the seconds it takes to fill five gallons, and it gives GPM, never PSI.

Seconds per 5 gallonsFlowWhat it means
20 s15 GPM (~57 L/min)very generous supply
30 s10 GPM (~38 L/min)good: carries an average zone
40 s7.5 GPM (~28 L/min)workable, keep zones small
60 s5 GPM (~19 L/min)tight: split into more, shorter zones
90 s3.3 GPM (~13 L/min)very tight: look for restrictions before designing

Account for pressure losses along the pipe

Every component between the spigot and the farthest head bleeds off pressure: pipe length, 90° elbows, tees, the solenoid valve and the filter. These friction losses add up, and the last head on the circuit always sees the least.

As a working rule, budget 7–12 PSI (0.5–0.8 bar) of total loss across mainline, valve and fittings on a residential system, and design so heads still get their minimum after that. At small-zone flows the pipe itself costs little: 30 ft (10 m) of 3/4-inch poly at 2.6 GPM loses only about 0.2 PSI (Hazen-Williams, C = 140). Most of the budget goes to the backflow preventer, the solenoid valve, the filter and the fittings, and each of them has a loss chart in its datasheet.

Sprinkler typeMinimum pressureOptimal pressureNotes
Rotary pop-up (rotors)22–30 PSI (1.5–2 bar)35–45 PSI (2.5–3 bar)Below the minimum the rotor stalls and dumps water in one spot
Fixed spray pop-up15–22 PSI (1–1.5 bar)30 PSI (2–2.5 bar)Tolerant of low pressure, but not for radii beyond 10–13 ft
Drip emitters7 PSI (0.5 bar)7–22 PSI (0.5–1.5 bar)Add a dedicated pressure regulator if mains exceed 30 PSI

Minimum pressure by sprinkler type

Rotary pop-up rotors need at least 22–30 PSI (1.5–2 bar) and are happiest at 35–45 PSI. Below the minimum the rotation mechanism stalls and the head waters a single arc instead of sweeping back and forth.

Fixed spray pop-ups tolerate less, working from 15–22 PSI, but they are not the right pick for radii beyond 10–13 ft (3–4 m). Drip lines want only 7–22 PSI (0.5–1.5 bar) and usually need their own pressure regulator when the supply runs above 30 PSI, since high pressure blows out emitter accuracy and can pop fittings off the tubing.

Worked example

Say the spigot reads 58 PSI static and 44 PSI dynamic, with a measured flow of 9 GPM. Subtract roughly 10 PSI for mainline, valve and fittings, and the farthest rotor sees about 34 PSI, just under the 35–45 PSI sweet spot, so catalog radii are close to realistic. The 9 GPM flow then caps how many heads share the zone: 80% of it is about 7.2 GPM, so four 1.5 GPM rotors (6 GPM) fit on one valve and a fifth or sixth goes on a second zone.

Run the same numbers at 30 PSI dynamic and the picture changes. After losses the rotors fall to about 20 PSI, throws shrink, and you either switch to low-pressure nozzles, add a booster pump, or accept tighter head spacing. Measuring first is what turns these from on-site surprises into design decisions.

How to calculate available pressure per zone

The static pressure at the tap is not what reaches the sprinklers. Fittings, solenoid valves and pipe runs lose 0.5–0.8 bar along the way. Measure dynamic pressure at the garden tap with the tee method above, then subtract 0.7 bar (about 10 PSI) as a conservative friction estimate.

If you measure 3 bar at the tap, design pressure at the sprinklers is roughly 2.3 bar. Use that figure to pick the right sprinkler type and size the radius. Keep in mind that pressure drops along the circuit: the head furthest from the valve gets less than the nearest one.

How many sprinklers per zone

The real limit is flow rate more than pressure. Each sprinkler consumes a certain number of litres per minute, and the total for one zone should stay under about 80% of the flow you measured with the bucket. A typical residential supply is 20–30 L/min (5–8 GPM).

A spray head uses 1–4 L/min depending on the arc it covers: the same 2.4 m (8 ft) MPR nozzle puts out about 1 L/min on a 90° corner, 2 L/min on a half circle and nearly 4 L/min on a full circle. A rotor uses anywhere from about 1 to over 30 L/min depending on the nozzle: a Rain Bird 5004 with the 1.5 nozzle is about 5.4 L/min. With 25 L/min available, so about 20 usable, a zone takes 6–10 spray heads, depending on how many are corners and how many full circles, or three rotors with that nozzle. For zone layout guidance see Hydrozones: split your garden to irrigate better.

Pressure reducer: when you need one

If static pressure exceeds about 4.5 bar (65 PSI), install a pressure reducer at the start of the system. Residential solenoid valves are rated to about 10 bar, but at high pressure the nozzles mist, and fittings and diaphragms work under strain for hours, especially at night when mains pressure peaks.

An adjustable reducer lets you set the working pressure your heads need. Mount it after the meter and the filter, ahead of all the zone valves. Where to fit it and what to set it to: Pressure reducer for irrigation: when you need one and how to install it.

Quick reference table

Popup spray: 1.5–3 bar, from about 1.5 L/min (small nozzle, 90° arc) to 14 L/min (4.6 m nozzle, full circle) per head. Popup rotor: 1.7–4.5 bar, from about 1 to over 30 L/min depending on the nozzle, 4–15 L/min in most gardens. Micro-jets: 1–2.5 bar, 0.2–0.6 L/min. Drip: 0.5–2 bar (with dedicated reducer).

These values apply to mid-range products. Always check the datasheet for your specific model: Rain Bird, Hunter and Gardena all publish pressure/flow/radius curves free of charge on their websites.

Sprinkler typeWorking pressureFlow per head
Pop-up sprays1.5–3 bar1.5–14 L/min
Pop-up rotors1.7–4.5 bar1–36 L/min by nozzle
Micro-sprays1–2.5 bar0.2–0.6 L/min
Drip (with dedicated reducer)0.5–2 bar2–8 L/h per emitter

Balancing zones so pressure is even across the system

On a system with several zones fed from the same main valve, zones closer to the valve get slightly higher pressure than distant ones. On well-sized residential systems the difference is usually under 0.2 bar and can be ignored. The problem shows up with very long branches (over 30 m) run on undersized pipe (20 mm where 25 mm was needed).

To balance: use adequate pipe diameter for each zone's flow (friction tables in Sprinkler pipe and fittings: PVC vs poly, Schedule 40 vs Class 200, and what size you need), place solenoid valves near the connection point rather than at the far end of a run, and adjust individual zone flow with the regulating screw on the valve where available. If pressure differences are unavoidable given the garden's layout, compensate with run time instead: the lower-pressure zone needs a few extra minutes to deliver the same volume of water.

What to do if pressure is too low

If measured pressure at the tap is below 2 bar, pop-up spray heads will not cover their nominal radius and coverage will be patchy. Options: redesign zones to use fewer sprinklers per zone (lower flow means lower friction losses and more pressure at the heads); switch part of the garden to drip, which runs at much lower pressure; or add a booster pump. Before buying a pump, check that the problem is pressure and not flow, because a pump cannot create water the supply does not deliver; sizing it step by step is in Irrigation Pump: How to Tell If You Actually Need One (and How to Size It).

A partial fix that costs nothing: if pressure is low only at peak hours (7–9 am and 6–8 pm), run zones in the early morning, when demand on the mains is lowest and pressure is usually a few tenths of a bar higher. Measure at the hour you plan to irrigate.

Frequently asked questions

What pressure do I need for sprinklers?

Plan for 35–45 PSI at the head for rotors and about 30 PSI for fixed sprays; drip runs on 7–22 PSI with a regulator. Measure dynamic pressure at the spigot and subtract roughly 10 PSI of friction to estimate what the head will see.

Can I measure without a gauge?

Not reliably. A 5-gallon bucket and a stopwatch measure flow in GPM, not pressure, and short, weak throws or stalled rotors only tell you pressure is probably low. To size a system you need a number in PSI, and a $10 hose-bib gauge gives you one before you choose heads.

My pressure seems too high. Is that a problem?

Above 65–80 PSI you will see misting, premature seal wear and blown fittings. A pressure-reducing valve set to 45–50 PSI for spray and rotor zones protects the system and cuts water lost to drift.
