Pressure reducer for irrigation: when you need one and how to install it
How to detect excess pressure, which reducer to choose, and where to install it to protect nozzles and valves.
What is a pressure reducer and why irrigation needs one
A pressure reducer (also called a pressure-reducing valve or PRV) is a device that lowers incoming water pressure to a stable set value regardless of fluctuations in the mains supply. In irrigation, it protects sprinkler heads, solenoid valves, and drip emitters from damage caused by excessive pressure.
Most residential sprinkler systems work well at about 2.5–4.5 bar (35–65 PSI) at the supply. Above 4.5 bar, spray heads mist instead of throwing a defined pattern, the fine droplets drift away on the wind, and fittings, seals and valve diaphragms stay under strain for hours at a time. Drip lines are more sensitive still: their fittings and cheap tubing pop apart well below that level. A reducer at the head of the system keeps all of them inside their working range.
How to tell if you need one
Measure static pressure at the garden tap with an inexpensive hose-thread pressure gauge, with every tap closed, late in the evening or early in the morning: mains pressure is usually highest when demand is low. If the reading exceeds about 4.5 bar (65 PSI), fit a reducer. Residential solenoid valves are rated to about 10 bar, but nozzles and drip components work best far below that, and water hammer when a zone shuts off adds short spikes on top of the static reading.
Visible symptoms of excess pressure: misting from spray heads instead of a clean arc, pop-up nozzles that eject or rotate erratically, drip emitter connections that frequently pop off, and compression fittings that slowly weep at high pressure. Any of these symptoms warrants a pressure measurement before buying new components.
How a pressure reducer works
A pressure reducer contains a spring-loaded diaphragm. Incoming high pressure acts on one side of the diaphragm; the spring pushes back on the other side. When inlet pressure exceeds the spring's set force, the diaphragm moves to partially close the valve, throttling flow until the outlet pressure matches the set value. The balance is dynamic: the reducer adjusts continuously as flow demand changes.
Fixed reducers are pre-set at the factory (typically 2 bar or 3 bar) and cannot be adjusted. Adjustable reducers have a tension screw that compresses or relaxes the spring, changing the set pressure. For irrigation, adjustable models are preferred because you can set the pressure your heads need, and correct it later, simply by turning the screw.
Where to install a pressure reducer

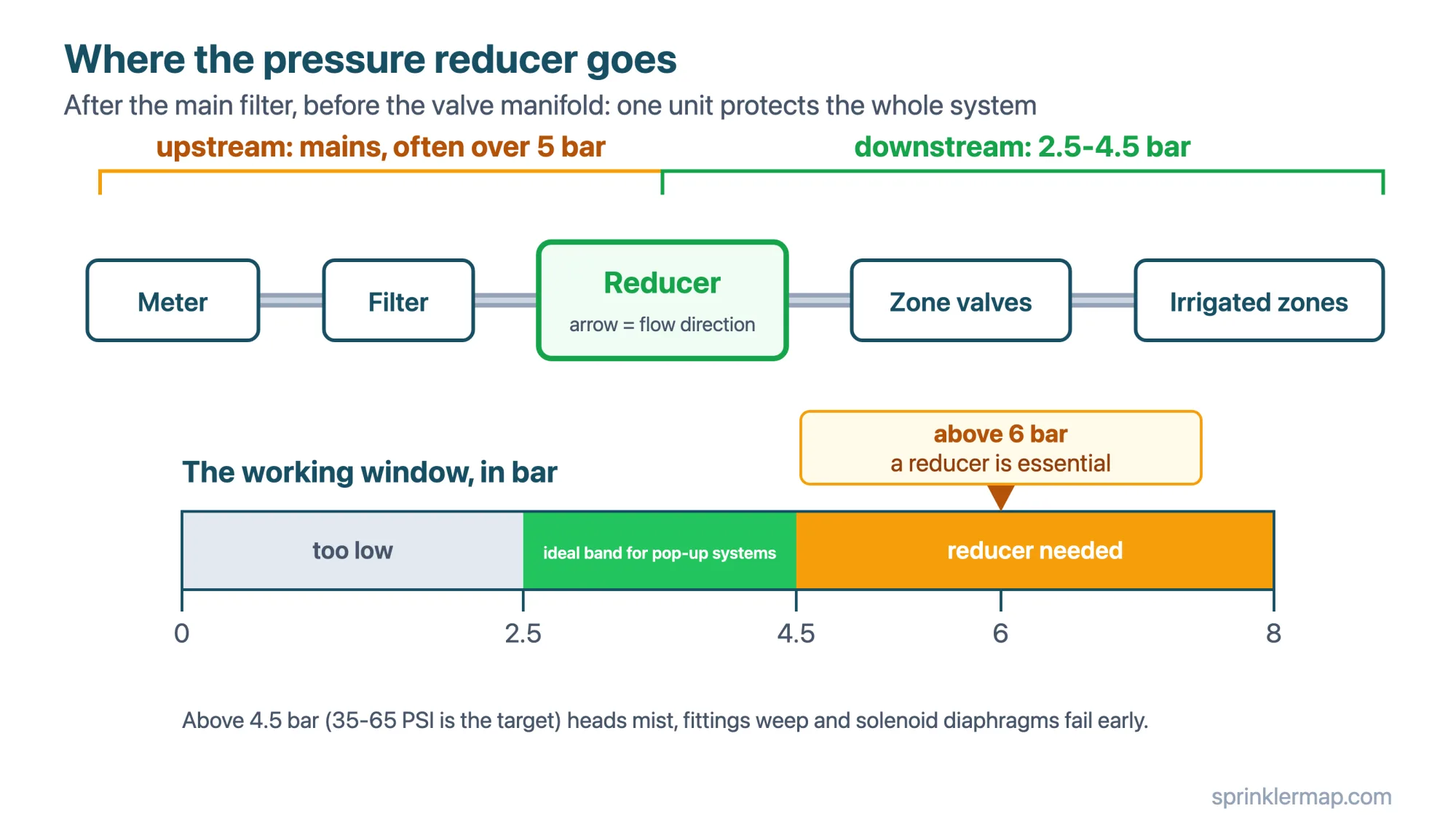

The standard position is after the main line filter and before the zone valve manifold, with the flow arrow on the body pointing downstream. This placement ensures every zone operates at the reduced pressure, and the filter upstream of the reducer protects the reducer's diaphragm from sediment. A shut-off valve on each side lets you service it without draining the system.
For systems that mix spray and drip zones with different pressure requirements, a second reducer can be installed specifically on the drip manifold, set to 1–2 bar. Spray and rotor zones then get their pressure and drip zones their lower optimum at the same time.
Always use pipe thread tape (PTFE) on the threaded connections when installing a reducer. Tighten finger-tight first, then add one and a half turns with a wrench. Do not over-tighten: cast brass threads are strong but can crack under excessive torque.
Setting the correct output pressure
Adjust an adjustable reducer with a pressure gauge installed downstream. Turn the adjustment screw clockwise to increase pressure, counter-clockwise to decrease. Set pressure while the system is running (dynamic pressure), not static, otherwise the actual operating pressure will be slightly lower than the set value.
Target pressures at the head, by type: fixed spray nozzles work best at about 2–3 bar (30–45 PSI) and mist above about 3.5 bar; MP Rotators at about 2.8 bar (40 PSI); gear rotors (Hunter PGP, Rain Bird 5004) at about 2.5–4 bar (35–58 PSI); drip at 1–2 bar (15–29 PSI). The setting at the reducer has to cover the pipe losses and the elevation up to the last head as well, so set it a little above the head target and check the reading at the far end of a running zone. For mixed systems, set the main reducer for the sprinklers and add a drip reducer on each drip zone.
| System type | Set pressure | Notes |
|---|---|---|
| Pop-up spray heads | 2–3 bar (30–45 PSI) at the nozzle | Misting above about 3.5 bar |
| Pop-up rotor heads | 2.5–4 bar (35–58 PSI) | Short, irregular throw below the minimum |
| MP Rotators | about 2.8 bar (40 PSI) | Hunter's recommended pressure |
| Drip emitters | 1–2 bar (15–29 PSI) | Always use a dedicated drip reducer |
Pressure reducer for drip irrigation
Drip systems deserve particular attention because emitters are the most pressure-sensitive components in any irrigation system. A non-compensating emitter rated at 2 L/h at 1.5 bar delivers roughly 2.8 L/h at 3 bar, since its flow rises with about the square root of pressure; pressure-compensating emitters hold their rate over the range on their datasheet. The bigger risk at high pressure is mechanical: barbed fittings and budget tubing blow apart.
Drip-specific pressure reducers are compact inline devices designed for 16 mm or 1/2" hose connections. They are pre-set at fixed values (commonly 1.4, 1.7 or 2.1 bar, that is 20, 25 or 30 PSI) and install in the drip line together with the filter, right after the zone valve. They are inexpensive, so every drip zone should have one.
Key takeaways
Measure your static pressure before designing any irrigation system, at night as well as during the day: above about 4.5 bar, fit a pressure reducer. Install it after the main filter, before the valve manifold. Use an adjustable model so you can tune the pressure. Aim for about 2–3 bar at spray nozzles, 2.5–4 bar at rotors and 1–2 bar for drip, allowing for pipe losses and elevation. A separate compact drip reducer on every drip zone keeps fittings from blowing apart and emitters at their rated flow.
Frequently asked questions
Do I need a pressure reducer if my tap pressure is only 3 bar?
Probably not for spray or rotor zones, since 3 bar is within the ideal operating range. However, if you have drip irrigation, add a compact inline drip reducer set to 1.5 bar on the drip manifold, because 3 bar is too high for most drip emitters.
Can a pressure reducer also fix water hammer?
Partially. Water hammer is a pressure spike caused by sudden valve closure. A reducer limits the static pressure level, which reduces the amplitude of hammer spikes. However, for serious hammer, a dedicated hammer arrestor (a small pressurised chamber installed near the valve manifold) is more effective.
The adjustment screw on my reducer turns but the outlet pressure does not change. What is wrong?
Most adjustable reducers have a locknut that must be loosened before the adjustment screw will move the diaphragm spring. Loosen the locknut (the outer ring on the adjustment cap), make the pressure change, then retighten the locknut to hold the setting.
Recommended products
These product links are affiliate links: if you buy on Amazon or AliExpress through them it costs you nothing extra, but it helps us keep SprinklerMap alive as a project and create new useful content.
| Product | Description | Price (€) | Buy |
|---|---|---|---|
| Watts 3/4" adjustable pressure reducer | Membrane-type 3/4" pressure reducer with replaceable cartridge. Adjustable 1.5–6 bar. Brass body with integrated strainer. Suitable for residential irrigation and mains protection. | ~€25-45 | Amazon |
| Hunter PRS40 pressure-regulated pop-up heads | Hunter Pro-Spray PRS40 pop-up bodies with a built-in regulator that holds 2.8 bar (40 PSI) at the nozzle, the pressure MP Rotator nozzles are designed for. They even out pressure between heads on slopes and long zones, but pipes and valves upstream still see full mains pressure, so they do not replace the main reducer. Pop-up heights from 5 to 30 cm. | ~€5-12 each | Amazon |
| Glycerine pressure gauge 0–10 bar | Glycerine-filled pressure gauge for stable readings during irrigation operation. 0–10 bar scale, 1/4" bottom entry. Essential for measuring actual line pressure before sizing a reducer. | ~€8-15 | Amazon |
| Drip filter + 2 bar reducer combo 3/4" | Combined Y-filter and 2 bar pressure reducer in one body, purpose-built for drip irrigation. Protects emitters and drip tape from excess pressure and clogging. Standard 3/4" connections. | ~€15-25 | Amazon |
| Product | Description | Price (€) | Buy |
|---|---|---|---|
| Adjustable pressure reducing valve, 1-6 bar | Threaded reducer with an adjustment collar: cuts the mains spikes that mist your spray heads and stress the fittings. | ~€10-25 | AliExpress |
| Water pressure gauge 0-10 bar, hose fitting | Digital or glycerine gauge with a garden thread: the minimum tool to measure pressure before sizing your zones. | ~€8-18 | AliExpress |
| Y filter 3/4", 120 mesh | Washable screen filter to fit upstream of any drip line: without it, emitters clog within a season. | ~€6-15 | AliExpress |
Technical note: The pressure, flow, coverage radius and cost figures in this article are indicative and calculated under standard conditions (2.5 bar, flat ground, short pipe runs). The actual outcome depends on the pressure available in your system, your meter's flow rate, head loss along the pipes and the specifications of the sprinklers you choose. For larger installations or complex situations, it's worth checking with a qualified technician or running the numbers on your own garden's real data.
