How to bury irrigation pipes: depth and techniques
Practical guide to burying irrigation pipes: correct depth, which pipe to use, how to open trenches in established lawn and how to protect crossings under paths.
Tools you need before you start
Essential tools: a flat spade or electric edger for opening lawn slots, a PE pipe cutter or fine-tooth hacksaw for clean cuts, a compression fitting spanner (or adjustable wrench), a spirit level for checking slope, a 30 m tape measure, and a pressure gauge for testing before backfilling.
For long runs in a large lawn, a narrow chain trencher hired for a day cuts neat, even slots far faster than a spade and damages less turf. A mallet and a 20 mm sharpened steel rod let you push pipe under paths without excavation. Before you dig, have buried utilities marked: gas, power and water service lines often run from the house to the street right where the main line will go (in the US, call 811 a few working days ahead; the service is free).
Minimum and maximum depth

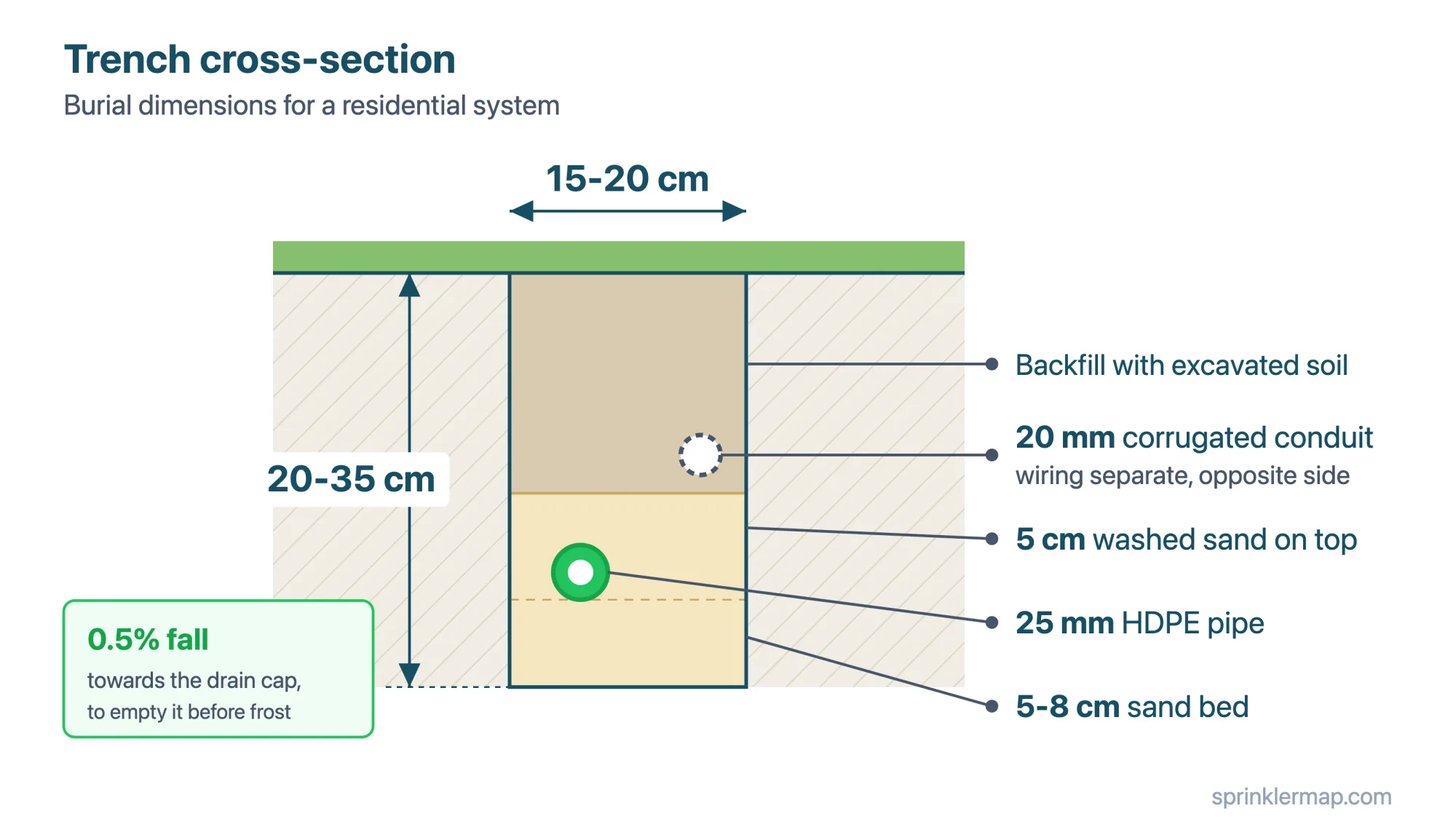

Minimum burial depth: 20 cm. Below this threshold, mowers and garden forks can dislodge fittings, and grass roots invade push-fit joints over time. In areas with real winter frost, take main lines to at least 30–35 cm (12–14 in). In cold climates the frost line is much deeper than that, so depth alone does not protect the pipe: what does is draining or blowing out the system before the first freeze.
Maximum practical depth: 40–45 cm for garden irrigation. Beyond that, excavation becomes laborious with no meaningful benefit. The exception is pipes crossing vehicle traffic areas: go to 50–60 cm and sleeve the pipe through a larger protective conduit. Without a sleeve, repeated vehicle loads can deform or crush the pipe even at that depth.
Opening trenches in established lawn
The cleanest method for established lawn is a narrow cut with an electric edger or half-moon spade: open a 5–6 cm slot, just wide enough for the pipe. The grass roots on either side remain largely undamaged; the lawn closes back with almost no visible trace within 2–3 weeks if you keep the repair watered.
For wider trenches (needed for 32 mm main lines), cut and set aside 30 cm sod sections, whole turves with the root mat intact. After backfilling and tamping, replace the sods and press them down firmly. With regular watering the turf heals in 10–15 days. Do not let removed turf dry out while you work; stack it grass-down in the shade.
Which pipe to use underground
Use polyethylene pipe rated for burial, in the right pressure class. Low-density PE (PE32 or PE40) PN6 is the usual choice for the laterals after the zone valves; for the main line, which is always under pressure, use PN10 or high-density PE100. Main line: 25 mm minimum. Branch lines: 20 mm. PE bends to follow a curved trench without a fitting at every turn, copes with freezing ground better than rigid pipe and does not rust.
Grey drain PVC from the hardware store is not made for water under pressure. Pressure-rated PVC (Schedule 40 or Class 200) is the norm in most of the US and works well, but it is glued at every joint, needs a fitting at every bend and is more fragile than PE in freezing ground; sizes and fittings are in Sprinkler pipe and fittings: PVC vs poly, Schedule 40 vs Class 200, and what size you need. Never bury the thin 4–6 mm drip microtubing as a supply line: it deforms under the soil and the system pressure. Keep it on the surface or at most 3–5 cm down, between the laterals and the emitters.
Crossings under paths and paved areas
Do not excavate under a path; push through instead. Sharpen a 20 mm steel rod and drive it through the soil under the path with a mallet, then pull it back and feed the HDPE pipe behind it. The technique works on compacted gravel or clay up to about 2 m width. On wider crossings or compacted hardcore, hire a mole plough.
Always sleeve the crossing: cut a larger-diameter conduit (40 mm HDPE) slightly longer than the crossing width and push that through first, then feed the irrigation pipe through the sleeve. This lets you withdraw and replace the pipe in future without breaking up the paving again.
Pressure test before backfilling
Always pressure-test the system before closing the trenches. Cap the line ends (or the risers, if the heads are not on yet), open the supply valve slowly, then open each zone valve so the laterals fill too, and keep the lines at supply pressure for at least 15 minutes while you walk the whole route. With the trench open, a leak shows in seconds as wet soil, a gurgle or a jet; once it is buried, finding it means digging the run up again.
Retighten a leaking fitting with the line depressurised, then repeat the test before backfilling that section. Then check each zone electrically: run it from the controller and confirm the valve opens and the heads pop up. A valve that does not open is almost always a wiring problem (common wire not connected, zone wires swapped); one that does not close usually has debris between the diaphragm and the seat.
Map the system before backfilling
Before covering trenches, photograph everything: overhead shots every 3–5 m documenting pipe routing and every fitting location. Store the photos with the date in a folder titled with the installation year. In five years you will know exactly where to dig without risking cutting through an existing line.
Better still, note distances from walls or fixed boundaries on a rough sketch. A phone photo of the sketch stored alongside the trench photos is enough. Fifteen minutes of documentation now saves hours of exploratory digging later and prevents the expensive scenario of cutting through an unmarked pipe with a power auger.
Key takeaways
Bury pipes at 20 cm minimum and main lines at 30–35 cm where winters freeze, and drain the system before frost. Use PE of the right pressure class (PN6 for laterals, PN10 or PE100 for the main line) or pressure-rated PVC, never drain pipe. For crossings under paths, push through a sleeve rather than excavate. Pressure-test with the trenches open. Photograph every fitting and every run with distances from fixed reference points.
Frequently asked questions
Can I bury the pipe shallower to save effort?
Shallower than 20 cm (8 in) is risky. A core aerator, an edging spade or a garden fork works in the top few inches of the lawn, and shrub roots reach a shallow pipe within a few seasons. Dig to the correct depth the first time.
Do I need to slope the pipe downhill for drainage?
Not for the water to flow: in a pressurised system it moves in any direction. A gentle fall of about 0.5% towards a drain point is still worth it in frost areas, because the line then empties for winter. A perfectly flat or wavy run leaves water in the low spots, and that water can split a fitting when it freezes.
How do I repair a buried pipe cracked by frost?
Cut out the damaged section with 5 cm clearance each side of the crack and join with two compression couplers and a short replacement length. If frost caused the failure, increase burial depth on the replacement section.
